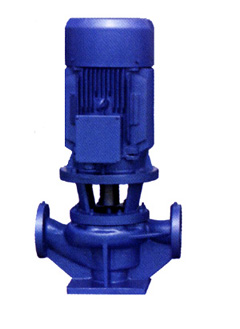

Mode : GD Vertical End-Suction Pump
Features:
Single stage centrifugal pumps Single mechanical seal used Impeller fitted on the extended shaft of motor
Specifications:
Flange DN 25-300
Capacity Max. 1000m
3
/h C°
Head Max. 150m
Liquid temperature
Type GD -15C° to 80C°
Type GDR -15C° to 150C°
Applications:
Air-conditioning District& industrial heating Cooling systems Other industrial plants

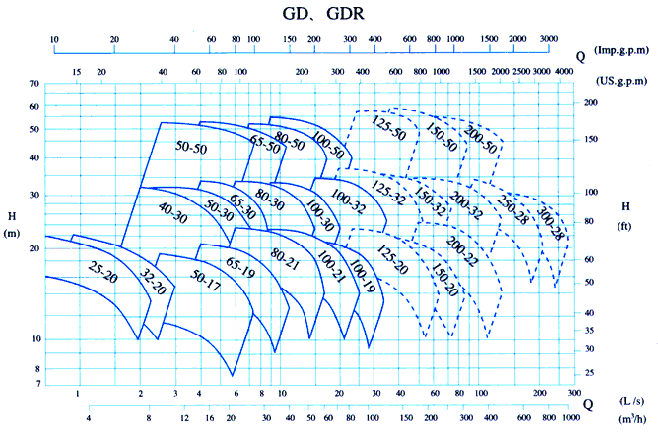

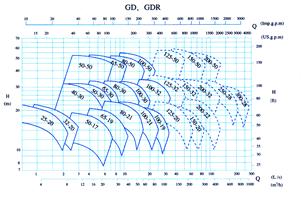

Performance range:
